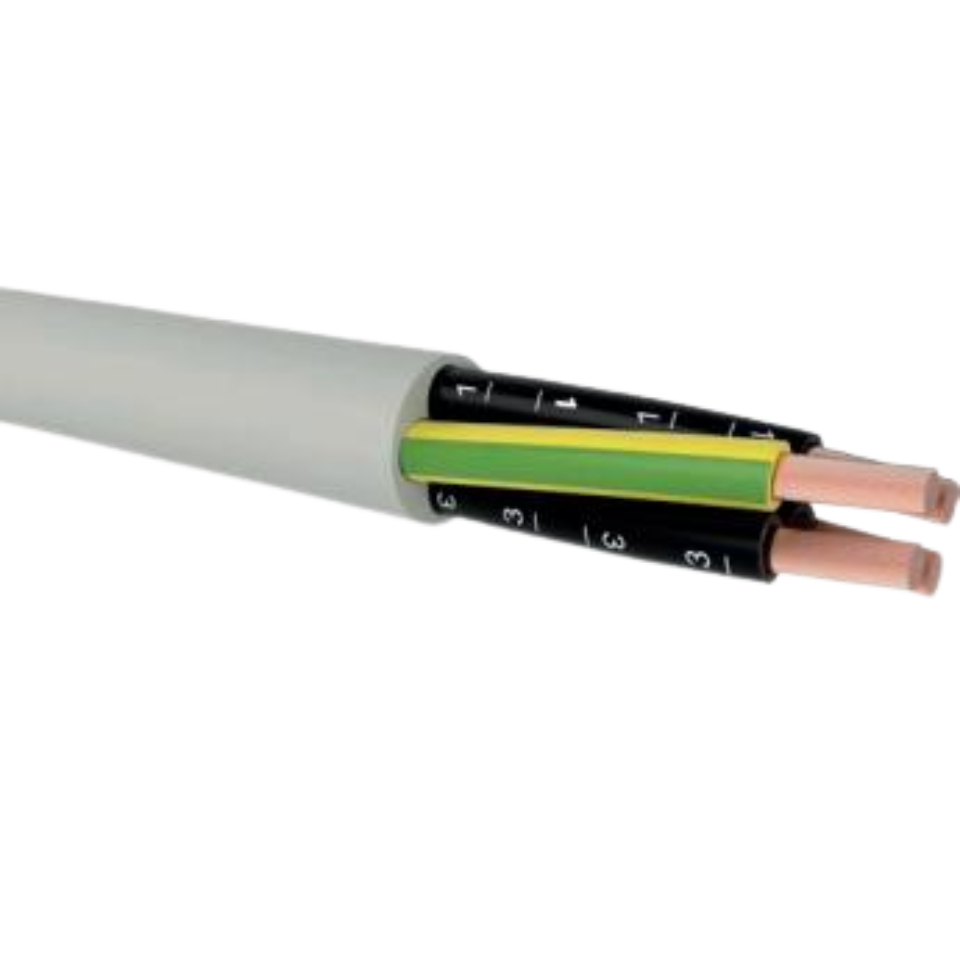

YSLY-JZ and YSLY-OZ are flexible control cables compliant with European standards (e.g., VDE 0250), used for signal and power transmission in industrial automation and machinery. Both feature fine-stranded copper conductors, PVC insulation, and oil-resistant PVC sheaths, suitable for indoor dry/wet environments but not UV-resistant, avoiding prolonged outdoor use. The key difference is: YSLY-JZ includes a green/yellow earth conductor, while YSLY-OZ does not.
Standard: VDE0281
Rated voltage: 300/500 V (Uo/U)
Operating temperature: -5℃~ 70 ℃
CPR standard: EN60332, EN50575
Coloured according to HD 308 S2, with one core green-yellow (JZ), without (OZ)
| Number of cores x nominal cross-section (mm²) | Max. conductor resistance (Ω/km) | Outer diameter (mm) appr. | Total weight (kg/km) appr. |
| 2x 0.5 | 39 | 4.8 | 32 |
| 3 x 0.5 | 39 | 5.1 | 39 |
| 4 x0.5 | 39 | 5.5 | 47 |
| 5x 0.5 | 39 | 6.0 | 55 |
| 7 x0.5 | 39 | 6.7 | 81 |
| 10 x0.5 | 39 | 8.4 | 101 |
| 12 x0.5 | 39 | 8.7 | 115 |
| 14 x0.5 | 39 | 9.1 | 131 |
| 16 x0.5 | 39 | 10.3 | 151 |
| 18 x0.5 | 39 | 10.3 | 166 |
| 21x 0.5 | 39 | 11.7 | 197 |
| 25x 0.5 | 39 | 12.5 | 228 |
| 30 x0.5 | 39 | 12.9 | 264 |
| 34 x0.5 | 39 | 13.9 | 296 |
| 40 x0.5 | 39 | 15.4 | 452 |
| 50 x 0.5 | 39 | 17.5 | 510 |
| 61 x0.5 | 39 | 19.1 | 670 |
| Number of cores x nominal cross-section (mm²) | Max. conductor resistance (Ω/km) | Outer diameter (mm) appr. | Total weight (kg/km) appr. |
| 2 x 0.75 | 26 | 5.2 | 40 |
| 3 x0.75 | 26 | 5.5 | 48 |
| 4 x0.75 | 26 | 6.0 | 59 |
| 5 x 0.75 | 26 | 6.5 | 70 |
| 6 x0.75 | 26 | 7.3 | 85 |
| 7 x0.75 | 26 | 7.3 | 94 |
| 10 x0.75 | 26 | 9.4 | 133 |
| 12 x0.75 | 26 | 9.7 | 153 |
| 15 x0.75 | 26 | 11.2 | 229 |
| 16 x0.75 | 26 | 10.7 | 195 |
| 18 x0.75 | 26 | 11.5 | 221 |
| 21x 0.75 | 26 | 12.4 | 256 |
| 25x 0.75 | 26 | 13.7 | 297 |
| 34 x 0.75 | 26 | 15.3 | 388 |
| 41x 0.75 | 26 | 17.0 | 668 |
| 42x 0.75 | 26 | 16.6 | 467 |
| 50 x 0.75 | 26 | 19.8 | 730 |
| 61 x 0.75 | 26 | 21.2 | 890 |
| 80x 0.75 | 26 | 26.0 | 1165 |
| 2x 1 | 19.5 | 5.6 | 47 |
| 3x 1 | 19.5 | 5.9 | 58 |
| 4x 1 | 19.5 | 6.5 | 71 |
| 5 x 1 | 19.5 | 7.3 | 88 |
| 7x 1 | 19.5 | 7.9 | 113 |
| 10 x 1 | 19.5 | 10.2 | 160 |
| 12 x 1 | 19.5 | 10.5 | 185 |
| 14 x 1 | 19.5 | 11.1 | 211 |
| 16 x 1 | 19.5 | 11.9 | 242 |
| 18 x 1 | 19.5 | 12.5 | 268 |
| 21x 1 | 19.5 | 14.0 | 310 |
| 25x 1 | 19.5 | 14.9 | 361 |
| 30 x1 | 19.5 | 15.5 | 421 |
| 41 x1 | 19.5 | 19.2 | 715 |
| 50 x 1 | 19.5 | 21.1 | 843 |
| 61 x1 | 19.5 | 22.5 | 1080 |
| 2x 1.5 | 13.3 | 6.0 | 58 |
| 3 x 1.5 | 13.3 | 6.4 | 72 |
| 4 x1.5 | 13.3 | 7.2 | 93 |
| 5x 1.5 | 13.3 | 7.8 | 111 |
| 6 x 1.5 | 13.3 | 8.5 | 129 |
| Number of cores x nominal cross-section (mm²) | Max. conductor resistance (Ω/km) | Outer diameter (mm) appr. | Total weight (kg/km) appr. |
| 7 x1.5 | 13.3 | 8.5 | 144 |
| 10 x1.5 | 13.3 | 11.0 | 205 |
| 12 x1.5 | 13.3 | 11.6 | 243 |
| 14 x1.5 | 13.3 | 12.1 | 278 |
| 16 x1.5 | 13.3 | 12.8 | 312 |
| 18 x1.5 | 13.3 | 13.5 | 346 |
| 21 x 1.5 | 13.3 | 15.1 | 400 |
| 25 x 1.5 | 13.3 | 16.2 | 467 |
| 32 x1.5 | 13.3 | 19.2 | 820 |
| 34 x1.5 | 13.3 | 19.7 | 860 |
| 50 x 1.5 | 13.3 | 23.7 | 1296 |
| 61 x1.5 | 13.3 | 25.4 | 1502 |
| 2x 2.5 | 7.98 | 7.1 | 85 |
| 3 x 2.5 | 7.98 | 7.5 | 108 |
| 4 x2.5 | 7.98 | 8.3 | 135 |
| 5x 2.5 | 7.98 | 9.0 | 162 |
| 7 x2.5 | 7.98 | 10.1 | 219 |
| 10 x2.5 | 7.98 | 13.0 | 310 |
| 12 x2.5 | 7.98 | 13.4 | 361 |
| 16 x2.5 | 7.98 | 14.9 | 467 |
| 18 x2.5 | 7.98 | 15.8 | 519 |
| 25x 2.5 | 7.98 | 18.9 | 705 |
| 34 x2.5 | 7.98 | 24.6 | 1513 |
| 2x 4 | 4.95 | 8.6 | 127 |
| 3x 4 | 4.95 | 9.4 | 167 |
| 4x 4 | 4.95 | 10.3 | 209 |
| 5 x 4 | 4.95 | 11.3 | 252 |
| 7x 4 | 4.95 | 13.9 | 488 |
| 2x 6 | 3.3 | 10.0 | 179 |
| 3x 6 | 3.3 | 10.7 | 232 |
| 4x 6 | 3.3 | 11.9 | 298 |
| 5 x 6 | 3.3 | 13.1 | 360 |
| 3 x10 | 1.91 | 14.3 | 407 |
| 4 x10 | 1.91 | 15.8 | 514 |
| 5 x 10 | 1.91 | 17.4 | 623 |
| 3 x16 | 1.21 | 16.9 | 605 |
| 4 x16 | 1.21 | 18.7 | 769 |
| 5 x 16 | 1.21 | 20.6 | 950 |
| 7 x 16 | 1.21 | 23.9 | 1779 |
| 4 x25 | 0.78 | 22.5 | 1165 |
| 7 x 25 | 0.78 | 31.2 | 2597 |
| 4 x35 | 0.554 | 24.9 | 1549 |
| 5 x 35 | 0.554 | 33.0 | 2635 |
| 4 x50 | 0.368 | 29.3 | 2151 |
| 5 x 50 | 0.368 | 33.0 | 2671 |
| 4 x70 | 0.272 | 42.2 | 4050 |
