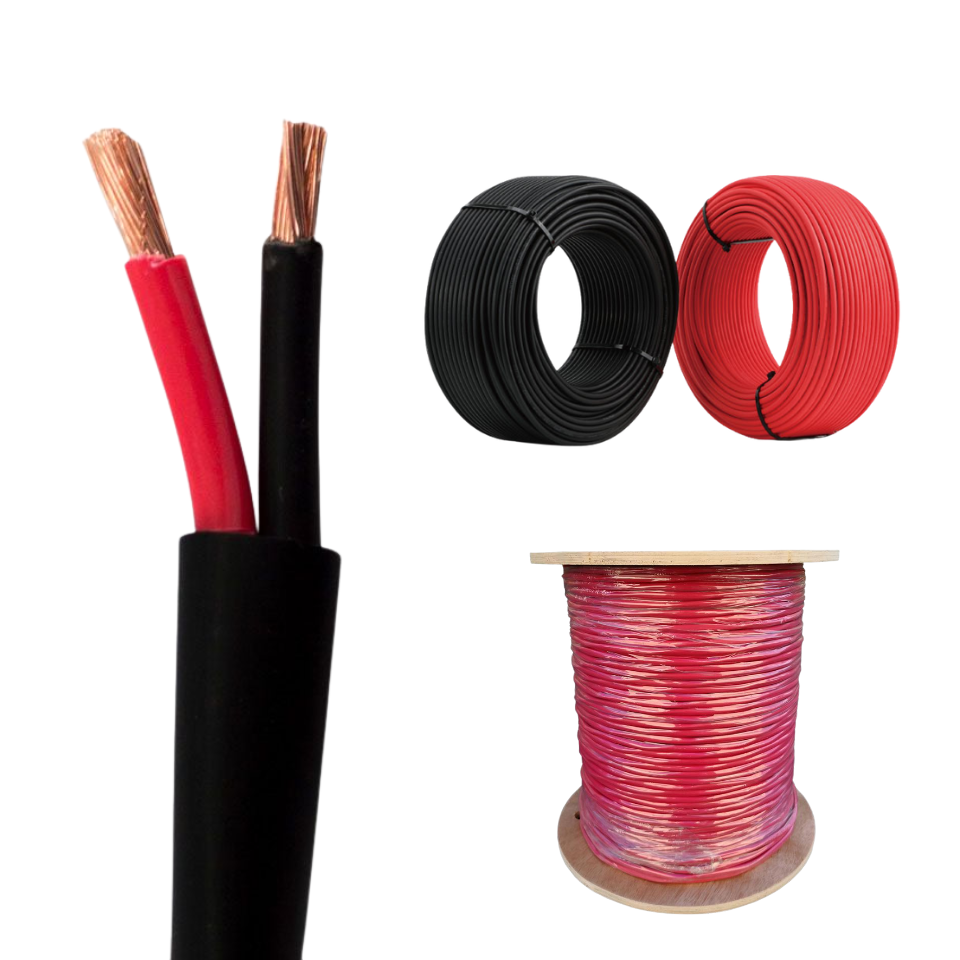

SP-4.0/4-LSZH Commercial Speaker Cable Series – B2ca EuroClass
EN50575 B2ca-s1a,d1,a1
IEC 60332-1-2,IEC 60754-1\2,IEC 61034-1\2, EN50399, RoHS
SP-4.0/4-LSZH Commercial Speaker Cable Series – B2ca EuroClass

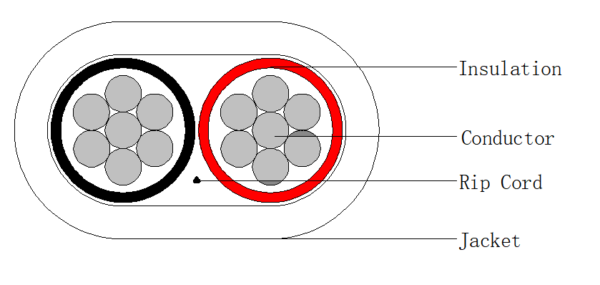

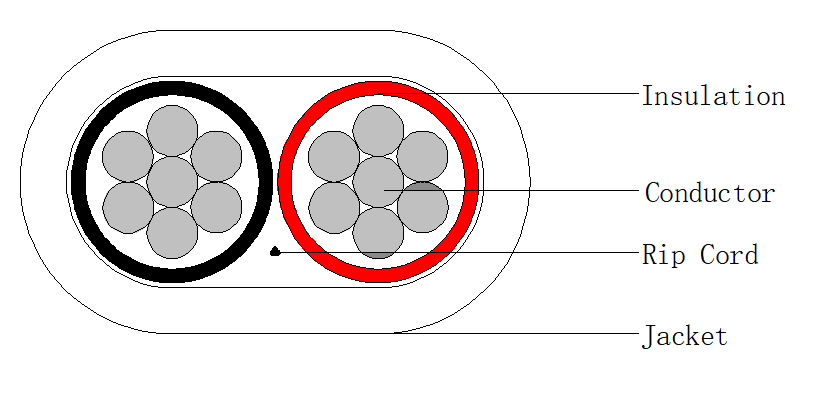

| Construction | |
| Center Conductor Material | Bare Copper |
| Center Conductor Gauge | 4 (56/0.30mm, reference) |
| Center Conductor Gauge | 4 Core(stranded) |
| Insulation Material | LSZH |
| Insulation Average Thickness | 0.45mm |
| Diameter | 3.50mm |
| Insulation Color | Black, Red, White, Green |
| Jacket Material | LSZH |
| Jacket Average Thickness | 0.750mm |
| Jacket Average Thickness | 10.0mm±0.20mm |
| Rip Cord | Yes |
| Electrical Properties | |
| Operating Temp | -20℃~ +60℃ |
| Voltage Rating | 300 Volt RMS |
| Operating Temp | 4.95Ohms/KM. at 20℃ |
