SP-1.5/4-LSZH Commercial Speaker Cable Series – B2ca EuroClass
EN50575 B2ca-s1a,d1,a1
IEC 60332-1-2,IEC 60754-1\2,IEC 61034-1\2, EN50399, RoHS

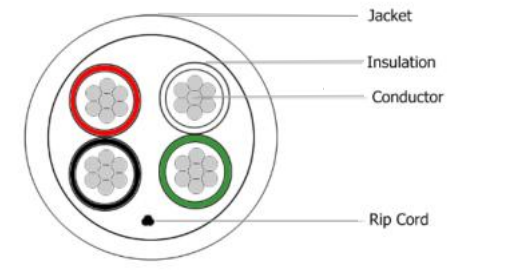

| Construction | |
| Center Conductor Material | Bare Copper |
| Center Conductor Gauge | 1.5 (30/0.25mm, reference) |
| Conductor No | 4 Core(stranded) |
| Insulation Material | LSZH |
| Center Conductor Gauge | 0.30 mm |
| Diameter | 2.30 mm |
| Insulation Color | Black, Red, White, Green |
| Jacket Material | LSZH |
| Jacket Average Thickness | 0.70 mm (0.016 inch) |
| Operating Temp | 7.0 mm±0.20mm |
| Rip Cord | Yes |
| Electrical Properties | |
| Operating Temp | -20℃~ +60℃ |
| Operating Temp | 300 Volt |
| DCR Conductor | 13.7 Ohms/KM. at 20℃ |
