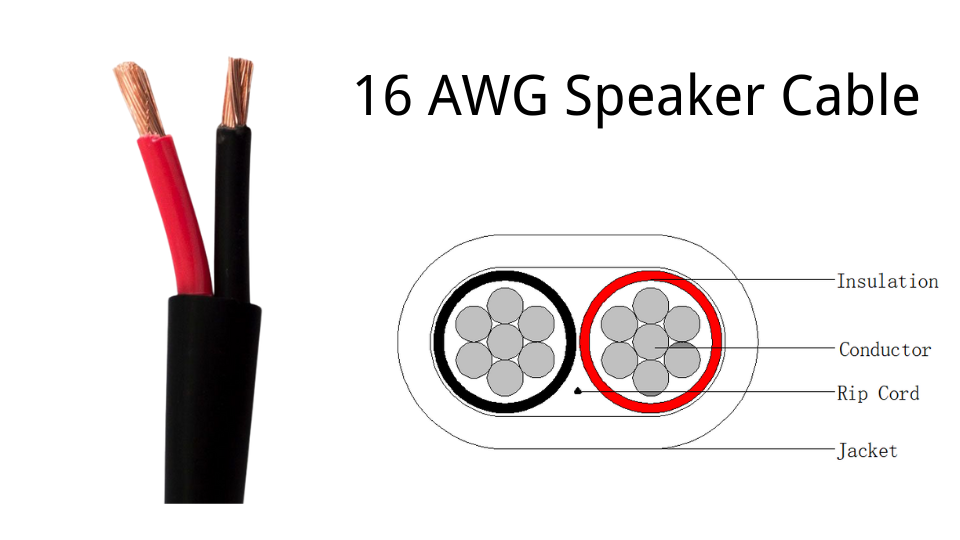

SP-1.5/2-(16 AWG) LSZH Commercial Speaker Cable Series – B2ca EuroClass
EN50575 B2ca-s1a,d1,a1
IEC 60332-1-2,IEC 60754-1\2,IEC 61034-1\2, EN50399, RoHS
| Construction | |
| Center Conductor Material | Bare Copper |
| Center Conductor Gauge | 1.5 ( 30/0.25mm, reference) |
| Conductor No | 2 Core (stranded) |
| Center Conductor Gauge | LSZH |
| Insulation Average Thickness | 0.30mm |
| Diameter | 2.30mm |
| Insulation Color | Black, Red |
| Jacket Material | LSZH |
| Jacket Average Thickness | 0.60mm |
| Diameter Over Jacket | 5.80mm±0.20mm |
| Rip Cord | Yes |
| Electrical Properties | |
| Black, Red | -20℃~ +60℃ |
| Voltage Rating | 300 Volt |
| Operating Temp | 13.7Ohms/KM. at 20℃ |
