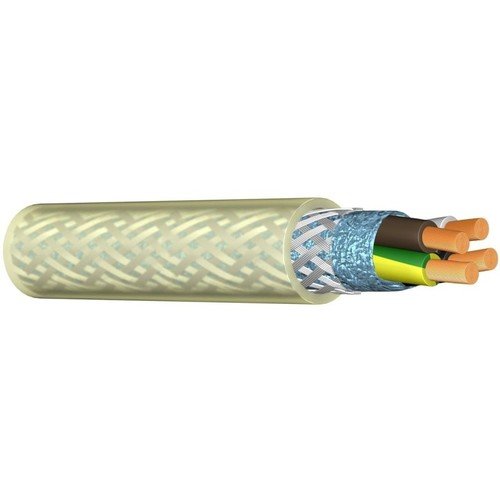

2YSLCY Low Voltage Screened Control Cable
Conductor material Bare copper
Conductor Class 5 = fine stranded
Insulation Polyethylene
Screen Aluminium foil + copper braid, tinned
Screen coverage 75 %
Sheathing material PVC, reinforced
Colour outer sheath Black
Flame-retardant VDE 0482-332-1-2/IEC 60332- 1-2
Oil-resistant EN 60811-2-1
Maximum permitted conductor temperature 70 °C
Permitted outer cable temperature, fixed -30 – +70 °C
Permitted outer cable temperature, in motion/ during installation -5 – +70 °C
Application:
The version with the three-stranded protective conductor is thinner, lighter, and distinguished by improved EMC properties. The cable is largely oil-resistant.
This cable was specifically developed for the EMC-compliant connection of frequency converters. For uses with medium mechanical strain with permanent installation and occasional motion indoors and outdoors, but not in the ground.
