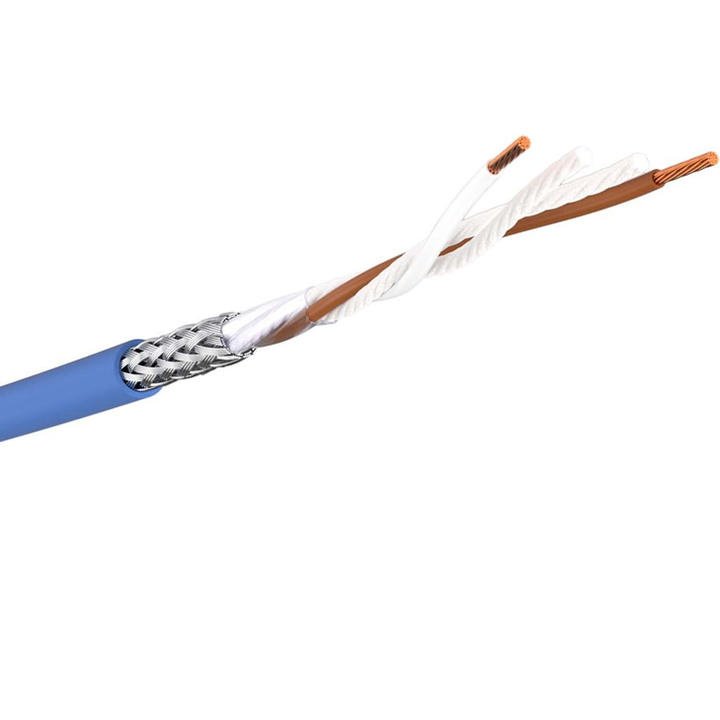

LiYCY/EB – Low Voltage Screened Control and Signal Cable
Conductor material Bare copper
Conductor Class 5 = fine stranded
Insulation PVC
Screen Copper braid
Screen coverage 85 %
Sheathing material PVC
Flame-retardant VDE 0482-332-1-2/IEC 60332- 1-2
Maximum permitted conductor temperature 70 °C
Permitted outer cable temperature, fixed -30 – +80 °C
Permitted outer cable temperature, in motion/ during installation -5 – +70 °C
Bending radius, fixed installation 10 x DA
Insulation resistance 100 MOhmxkm
Application:
For signal transmission between electronic devices, in computer systems, process control units, or office equipment with increased electromagnetic compatibility
requirements. The cable is suitable for application in intrinsically safe circuits due to the blue outer sheath.
