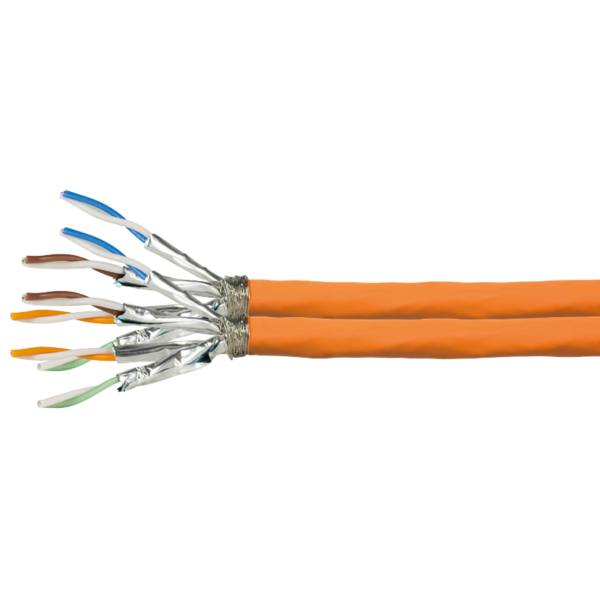

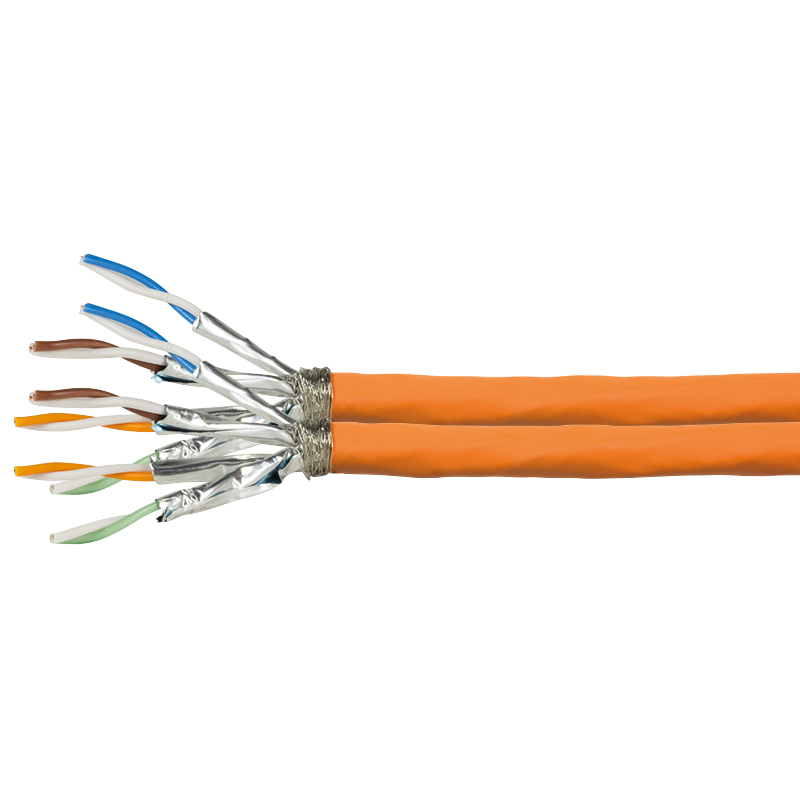

(S/FTP Pimf) Data Transmission Cable for Local Networks with
Pair Wise Screening and Overall Shielding Category 7
Conductor material Solid bare copper, Ø 0,57mm
Core insulation Foam-skin polyethylene
Pair wise screen Plastic laminated aluminium foil
Braid Tinned copper wires
Outer sheath Polyvinylchloride (PVC) yellow or
Halogen-free polymer compound orange
Standards: EN 50288-4-1
IEC 332-1, IEC 754-2 , IEC 1034-2
IEC 708-1 (core identification)
Technical Data:
Temperature Range -0°C TO +60°C （moved）
Loop impedance 14,5 [Ohm/100m]
Capacity Max. 45[nF/km]
Nom. Velocity of propagation NVP nom. 78,0
Attenuation 100,0+/- 15[Ohm]
couplingresistance 10[mOhm/m]
Capacity coupling 150[pF/100m]
Insualtion resistance >5[GOhm/km]
Test voltage at 50 Hz 700[VAC]
Application:
In the horizontal wiring as an installation cable for the transfer in cable canals as well as in pipes within telecommunication installations and data systems.
Area of application: ISDA, B-ISDA, IEEE 802.3 10 Base T Ethernet, IEEE 802.3 100 Base T Ethernet, IEEE 802.5 Token Ring CCDI (FDDI at Cu), Gigabit-Ethernet, ATM, DQDB, Video.
