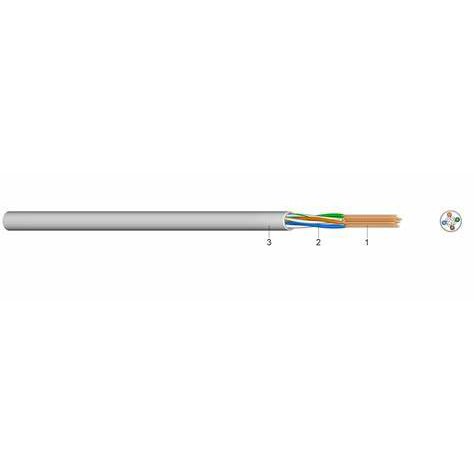

Cat5-LAN-200U
(F/UTP) Data Transmission Cable for Local Networks with Overall Shielding, CAT 5e
Conductor material Solid bare copper
Core insulation Polyvinylchloride (PVC)
Layer Plastic foil
Overall shielding Aluminium foil with a tinned drain wire Ø 0,5mm
Outer sheath Polyvinylchloride (PVC) grey or halogen-free polymer compound, orange, special Colours on enquiry
Standard CAT 5e, ETIA-EIA 568 A 5
ISO/IEC 11801, EN 50173, EN 50288-2-1
PVC: IEC 332-1,DIN VDE 0472 part 804 typeB
FRNC: IEC 332-1 and 3, IEC 754-2, IEC 1034-2
IEC 708-1 (core identification)
Technical Data:
Temperature range -0°C TO +60°C （moved）
Loop impedance 19,0 [Ohm/100m]
Capacity Max. 50 [nF/km]
Nom. Velocity of propagation NVP nom. 71,0
Attenuation 100,0 [Ohm]
Coupling resistance 10 [mOhm/m]
Capacity coupling 15 [pF/100m]
Insulation resistance 5 [GOhm/km]
Test voltage at 50 Hz 1000 [VAC]
Application:
In the horizontal wiring as an installation cable for the transfer in cable canals as well as in pipes within telecommunication installations and data systems.
Area of application: IEEE 802.3:10 Base T, 10 Base T Ethernet, 100 Base T, 1000 Base T, FDDI, ISDA, ATM.
