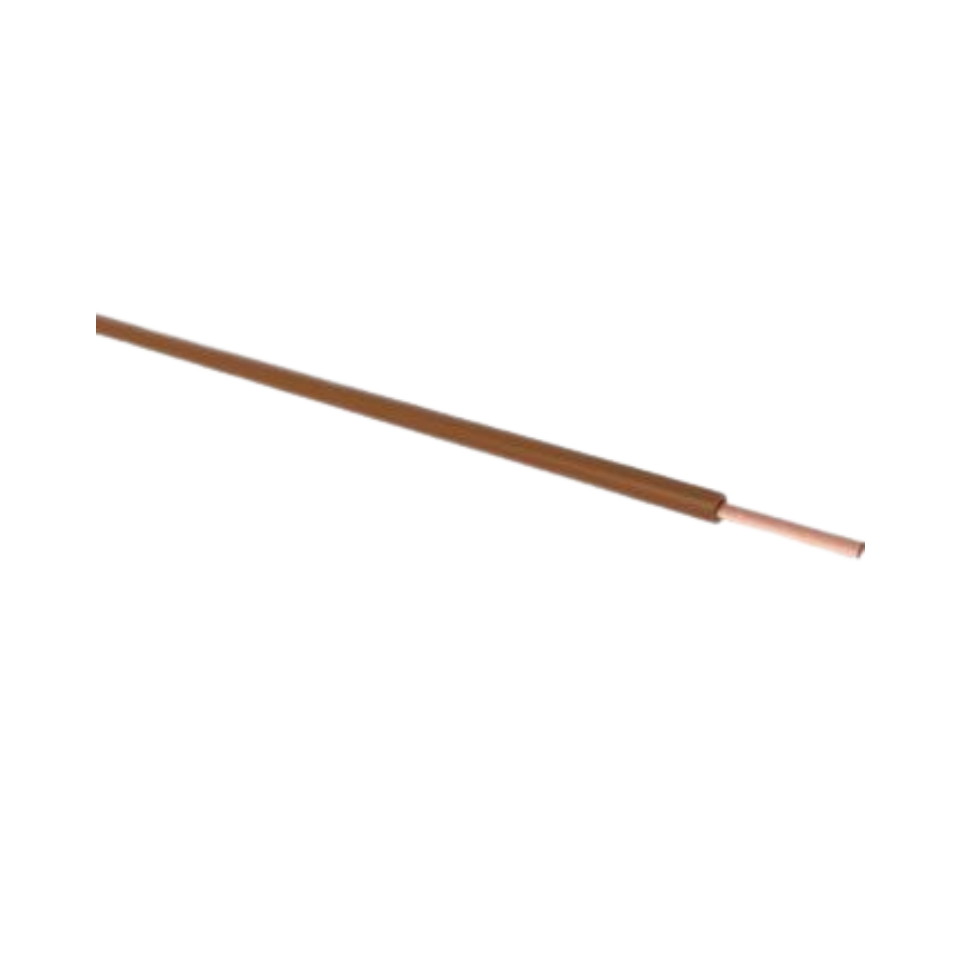

H07V-K is a single-core flexible power cable used for fixed low-voltage electrical installations (e.g., distribution boxes, lighting systems), featuring Class 5 flexible copper conductors and PVC insulation, suitable for dry or damp indoor environments.
Standard: EN 50525-2-31
Rated voltage: 300/500 V (Uo/U)
operating temperature: -30℃~ 70 ℃
CPR standard: EN60332, EN50575
| Nominal cross-section (mm²) | Core colours | Max.conductor resistance(Ω/km) | Total weight (kg/km) approx. | Total weight (kg/km) appr. |
| 0.5 | bk, bn, bu,vt, rd, og,ye,gy, gn, wh, gnye | 39 | 2.1 | 9 |
| 0.75 | bk, bn, rd, bu, wh | 26 | 2.2 | 12 |
| 1 | bk, bn, bu,vt, rd, og,ye,gy, gn, wh, gnye | 19.5 | 2.4 | 14 |
