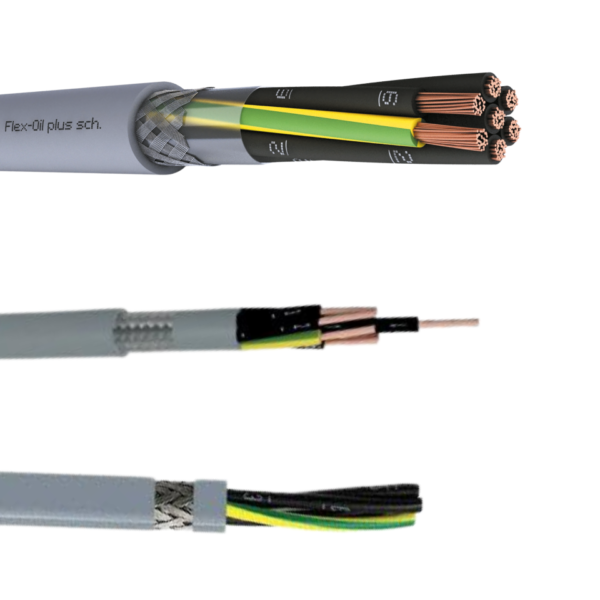

H05VVC4V5-K is an oil-resistant shielded flexible control cable compliant with European standard EN 50525-2-11, designed for industrial control and automation equipment, offering high flexibility, oil resistance, and electromagnetic shielding, suitable for oily, damp, or electromagnetic interference (EMI) environments, used in fixed installations or occasional flexing control circuits.
Standard: EN 50525-2-11
Rated voltage: 300/500 V (Uo/U)
Operating temperature: -10℃~60 ℃
CPR standard: EN60332, EN50575
| Number of cores x nominal cross-section (mm²) | Max. conductor resistance (Ω/km) | Outer diameter (mm) appr. | Total weight (kg/km) appr. |
| 2x 0.5 | 39 | 8.0 | 92 |
| 3×0.5 | 39 | 8.4 | 109 |
| 4 x0.5 | 39 | 9.1 | 126 |
| 5×0.5 | 39 | 10.1 | 156 |
| 7 x0.5 | 39 | 11.4 | 192 |
| 12×0.5 | 39 | 13.5 | 280 |
| 14×0.5 | 39 | 14.2 | 302 |
| 18×0.5 | 39 | 15.8 | 384 |
| 25 x0.5 | 39 | 18.6 | 556 |
| 34 x0.5 | 39 | 20.8 | 634 |
| 2 x 0.75 | 26 | 8.3 | 102 |
| 3 x0.75 | 26 | 8.8 | 115 |
| 4 x0.75 | 26 | 9.8 | 150 |
| 5 x0.75 | 26 | 10.8 | 173 |
| 7×0.75 | 26 | 12.1 | 235 |
| 12 x0.75 | 26 | 14.3 | 327 |
| 18 x0.75 | 26 | 16.9 | 488 |
| 25 x0.75 | 26 | 20.0 | 654 |
| 34 x0.75 | 26 | 22.1 | 821 |
| 2x 1 | 19.5 | 8.6 | 114 |
| 3×1 | 19.5 | 9.3 | 142 |
| 4×1 | 19.5 | 10.2 | 175 |
| 5×1 | 19.5 | 11.0 | 205 |
| 7 x1 | 19.5 | 12.9 | 264 |
| 12 x1 | 19.5 | 15.6 | 420 |
| 14 x1 | 19.5 | 15.7 | 433 |
| 18 x1 | 19.5 | 17.4 | 561 |
| 25×1 | 19.5 | 21.1 | 766 |
| 34 x1 | 19.5 | 24.1 | 996 |
| 2x 1.5 | 13.3 | 9.1 | 146 |
| 3 x1.5 | 13.3 | 10.2 | 176 |
| 4 x1.5 | 13.3 | 10.9 | 207 |
| 5×1.5 | 13.3 | 11.6 | 235 |
| 7×1.5 | 13.3 | 13.5 | 314 |
| 12×1.5 | 13.3 | 16.8 | 500 |
| 18×1.5 | 13.3 | 20.0 | 707 |
| 25 x1.5 | 13.3 | 24.2 | 950 |
| 34 x1.5 | 13.3 | 26.3 | 1204 |
| 2x 2.5 | 7.98 | 11.4 | 190 |
| 3×2.5 | 7.98 | 11.7 | 243 |
| 4 x2.5 | 7.98 | 12.8 | 280 |
| 5×2.5 | 7.98 | 13.9 | 342 |
| 7 x2.5 | 7.98 | 15.9 | 439 |
| 12×2.5 | 7.98 | 20.6 | 760 |
| 18×2.5 | 7.98 | 24.3 | 1052 |
| 25 x2.5 | 7.98 | 29.0 | 1375 |
| 34 x2.5 | 7.98 | 33.0 | 1892 |
