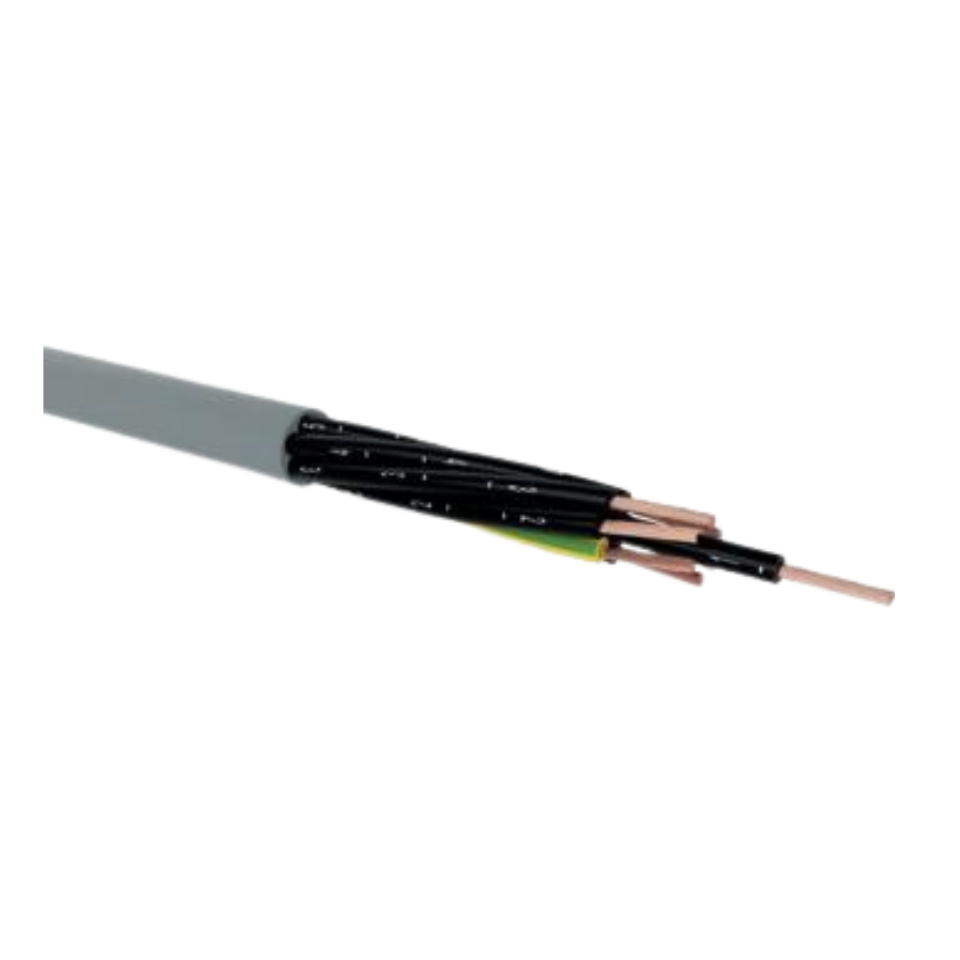

H05VV5-F is an oil-resistant flexible control cable compliant with European standard EN 50525-2-11, primarily used for power and control circuits in industrial equipment, offering high flexibility and oil resistance, suitable for indoor or outdoor lightly mobile applications, especially in oily or chemical environments.
Standard: EN 50525-2-51
Rated voltage: 300/500 V (Uo/U)
Operating temperature: -30℃~70 ℃
CPR standard： EN60332，EN50575
| Number of cores x nominal cross-section (mm²) | Max. conductor resistance (Ω/km) | Outer diameter (mm) appr. | Total weight (kg/km) appr. |
| 2x 0.5 | 39 | 5.9 | 46 |
| 3×0.5 | 39 | 6.2 | 54 |
| 4 x0.5 | 39 | 6.7 | 65 |
| 5×0.5 | 39 | 7.4 | 80 |
| 7 x0.5 | 39 | 9.1 | 119 |
| 10×0.5 | 39 | 10.8 | 166 |
| 12×0.5 | 39 | 11.2 | 186 |
| 14×0.5 | 39 | 11.7 | 215 |
| 18×0.5 | 39 | 13.0 | 251 |
| 25 x0.5 | 39 | 16.0 | 349 |
| 34 x0.5 | 39 | 17.7 | 480 |
| 2 x 0.75 | 26 | 6.3 | 52 |
| 3 x0.75 | 26 | 6.7 | 68 |
| 4 x0.75 | 26 | 7.3 | 82 |
| 5 x0.75 | 26 | 8.3 | 107 |
| 6 x0.75 | 26 | 9.0 | 132 |
| 7×0.75 | 26 | 9.7 | 145 |
| 12 x0.75 | 26 | 12.1 | 231 |
| 18 x0.75 | 26 | 14.0 | 313 |
| 18 x0.75 | 26 | 17.0 | 427 |
| 2x 1 | 19.5 | 6.6 | 66 |
| 3×1 | 19.5 | 7.0 | 78 |
| 4×1 | 19.5 | 7.6 | 104 |
| 5×1 | 19.5 | 8.7 | 123 |
| 7 x1 | 19.5 | 10.2 | 183 |
| 12 x1 | 19.5 | 13.0 | 269 |
| 14 x1 | 19.5 | 13.3 | 360 |
| 18 x1 | 19.5 | 15.0 | 400 |
| 25×1 | 19.5 | 18.0 | 546 |
| 34 x1 | 19.5 | 20.6 | 724 |
| 2x 1.5 | 13.3 | 7.3 | 77 |
| 3 x1.5 | 13.3 | 7.9 | 97 |
| 4 x1.5 | 13.3 | 8.7 | 128 |
| 5×1.5 | 13.3 | 9.6 | 149 |
| 6 x1.5 | 13.3 | 10.7 | 196 |
| 7×1.5 | 13.3 | 11.8 | 216 |
| 12×1.5 | 13.3 | 14.4 | 324 |
| 18×1.5 | 13.3 | 17.2 | 485 |
| 25 x1.5 | 13.3 | 21.7 | 671 |
| 34 x1.5 | 13.3 | 24.1 | 881 |
| 2x 2.5 | 7.98 | 9.1 | 110 |
| 3×2.5 | 7.98 | 9.6 | 154 |
| 4 x2.5 | 7.98 | 10.8 | 212 |
| 5×2.5 | 7.98 | 11.6 | 242 |
| 7 x2.5 | 7.98 | 14.2 | 350 |
| 12×2.5 | 7.98 | 17.7 | 543 |
| 18×2.5 | 7.98 | 21.4 | 787 |
| 25 x2.5 | 7.98 | 26.1 | 1175 |
| 34 x2.5 | 7.98 | 29.5 | 1450 |
