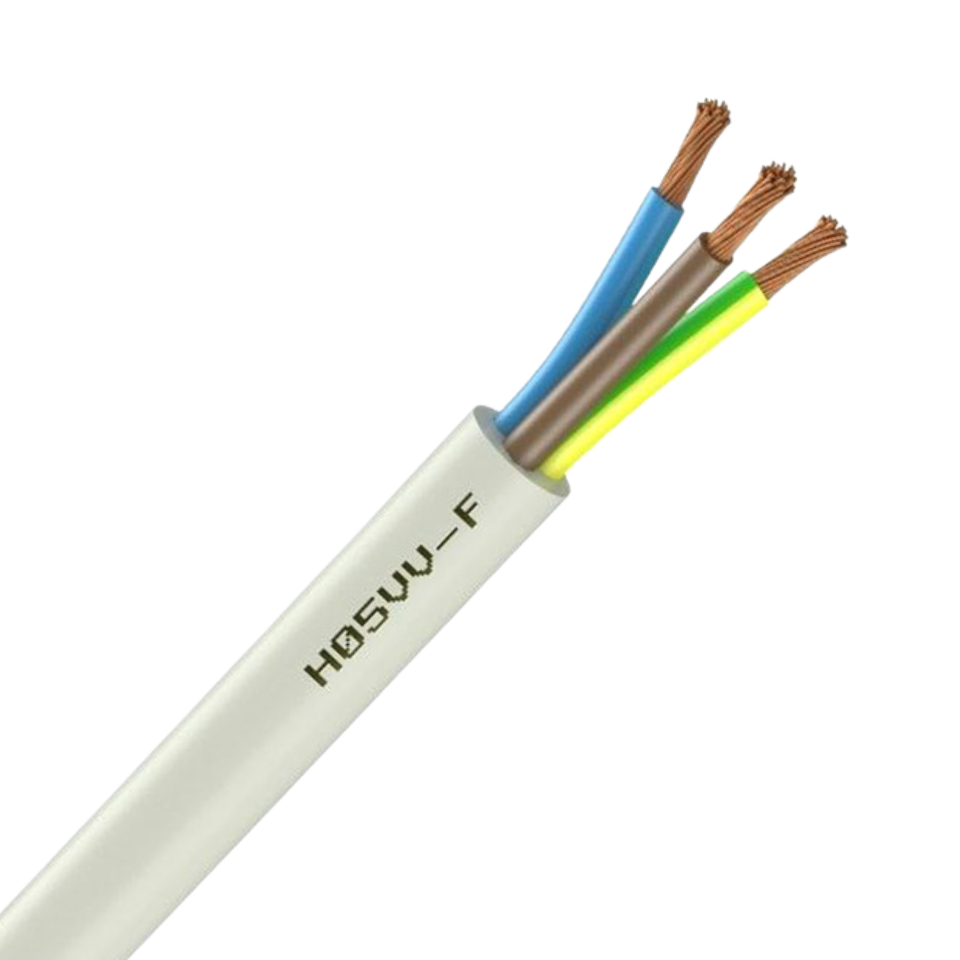

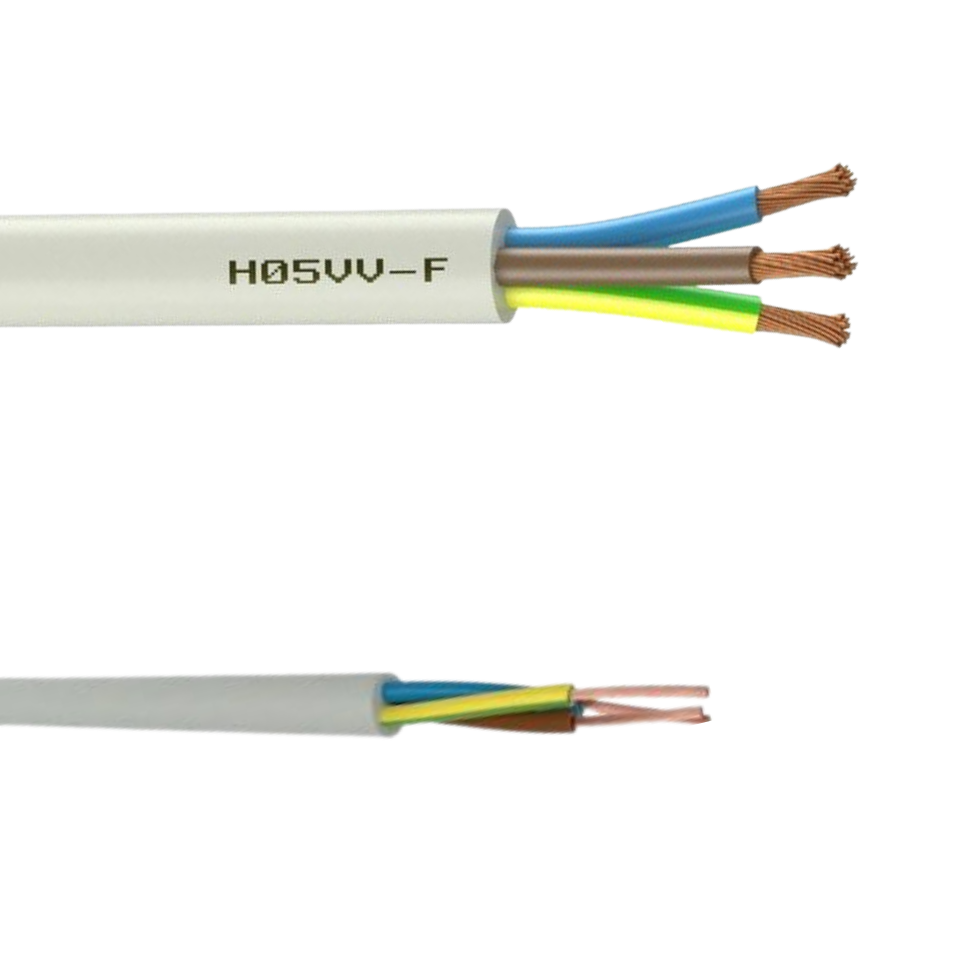

H05VV-F is a flexible power and control cable compliant with European standard EN 50525-2-11, primarily used for low-voltage power connections and control circuits, offering high flexibility and flame retardance, suitable for indoor fixed or lightly mobile equipment.
Conductor material Fine-stranded bare copper, class 6
Insulation PVC
Outer sheath PVC
Standards DIN VDE 0285-525-2-11
HD 21.5 S3+A1+A2
DIN EN 60228 class 5 (construction)
HD 308 S2 (core identification)
ÖVE / ÖNORM E 8241 (HD21)
Nominal voltage Uo/U 300 / 300 Volt
Test voltage 2000
Temperature range -5°C till +70°C
Operating temperature 150 °C
Short circuit time 5
Bending radius 5
Flammability EN 60332-1-2
Application:
Suitable for heating appliances, provided that there is no risk of contact with hot parts.
Suitable in dry and humid locations for connections of electrical appliances submitted to medium-level mechanical strength, like washing machines, refrigerators, etc.
