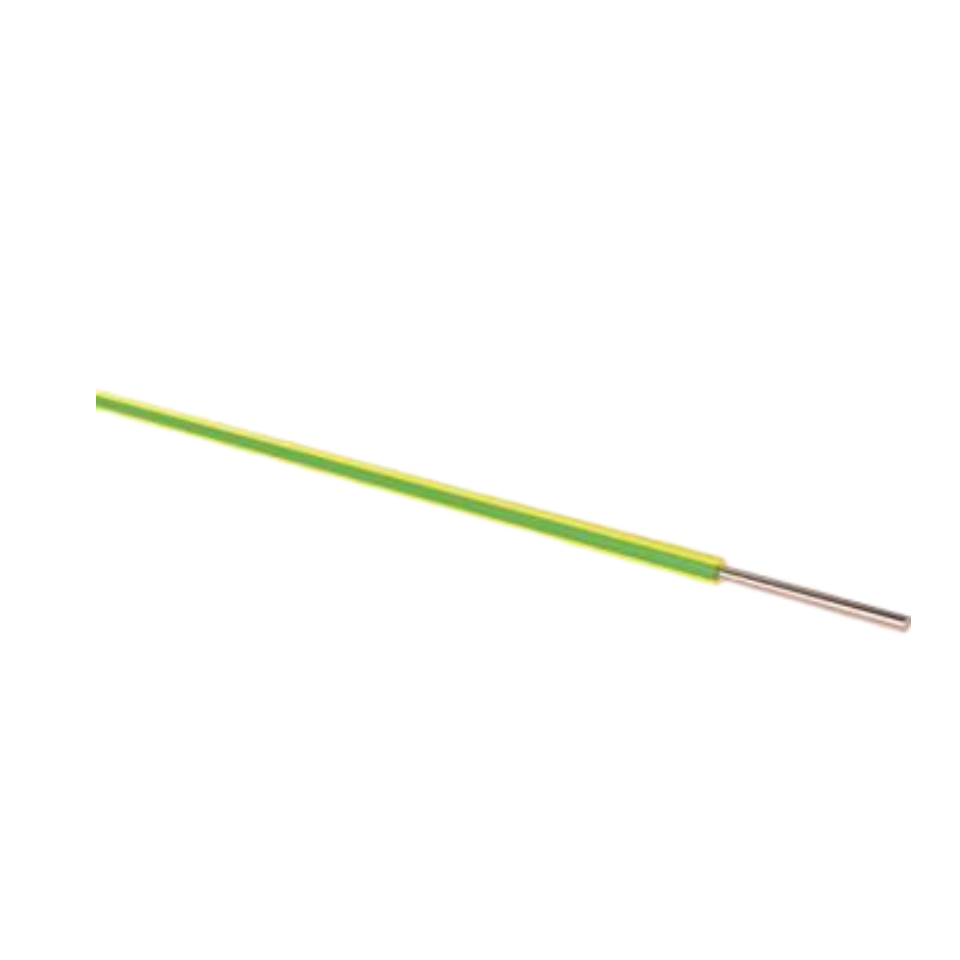

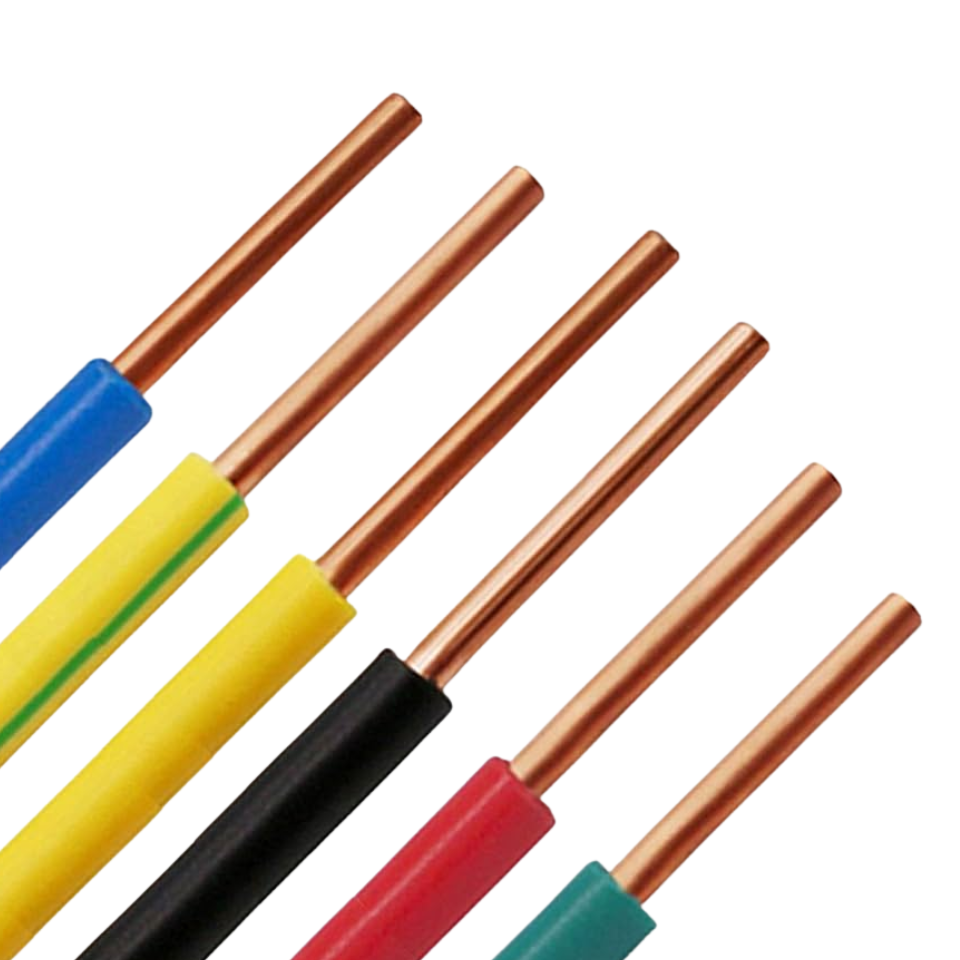

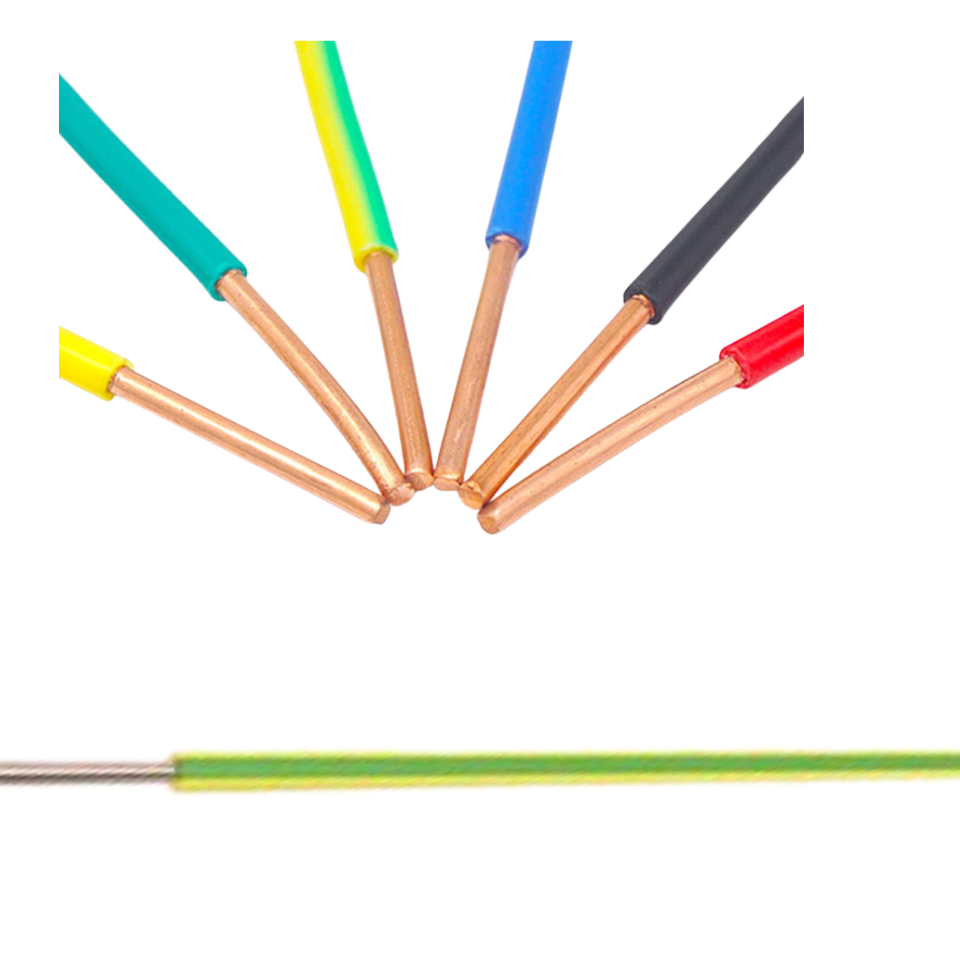

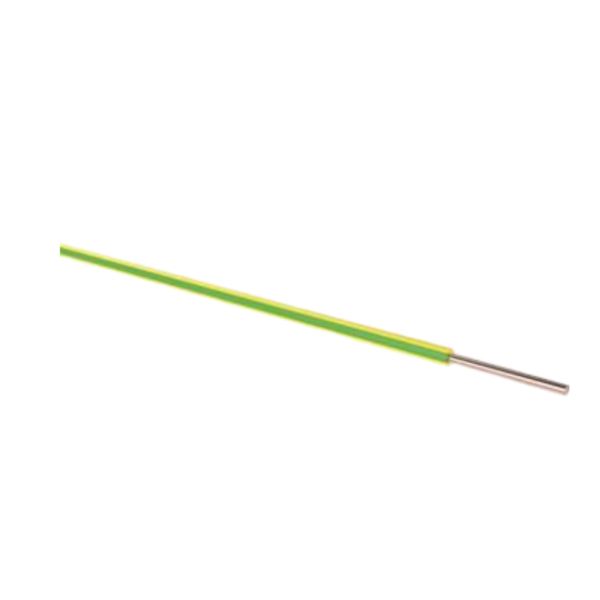

H05V-U is a single-core rigid power cable used for fixed low-voltage electrical installations (e.g., building wiring, switchboards), featuring solid copper conductors and PVC insulation, ideal for dry indoor environments.
Standard: EN 50525-2-31
Rated voltage: 300/500 V (Uo/U)
operating temperature: -30℃~ 70 ℃
CPR standard： EN60332，EN50575
| Nominal cross-section(mm²) | Core colours | Max. conductor resistance (Ω/km) | Outer diameter (mm) approx. | Outer diameter (mm) approx. |
| 0.5 | bk,bu, rd | 36 | 2.0 | 8 |
| 0.75 | bk, bn, rd, bu, wh | 24.5 | 2.1 | 12 |
| 1 | bk,bu, vt, gy, wh,gnye | 18.1 | 2.3 | 14 |
