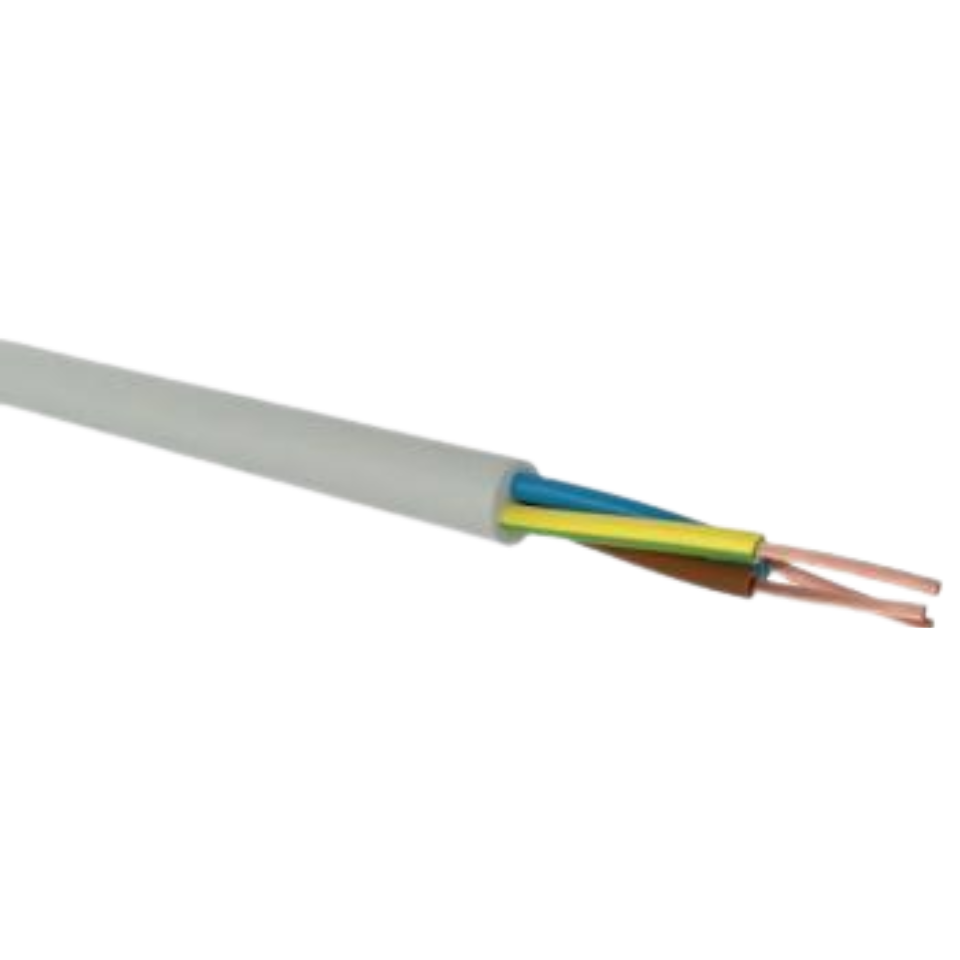

H03VV-F is a light-duty flexible power and control cable compliant with European standard EN 50525-2-11, primarily used for low-voltage power connections and control circuits in lightweight equipment, offering high flexibility and flame retardance, suitable for indoor non-fixed or lightly mobile applications.
Standard: EN 50525-2-11
Rated voltage: 300/300 V (Uo/U)
Operating Temperature: -10℃~60 ℃
CPR standard： EN60332，EN50575
| Number of cores x nominal cross-section (mm²) | Total weight (kg/km) appr. | Max. conductor resistance (Ω/km) | Totalweight(kg/km) appr. |
| 2×0.5 | 39 | 4.7 | 39 |
| 3×0.5 | 39 | 5.0 | 46 |
| 5×0.5 | 39 | 6.5 | 65 |
| 2×0.75 | 26 | 5.3 | 46 |
| 3×0.75 | 26 | 5.5 | 55 |
| 4×0.75 | 26 | 6.1 | 70 |
| 5×0.75 | 26 | 6.8 | 83 |
| 2x 1 | 19.5 | 5.5 | 51 |
| 3x 1 | 19.5 | 5.9 | 62 |
| 3G 1 | 19.5 | 5.9 | 62 |
| 4G 1 | 19.5 | 6.5 | 75 |
