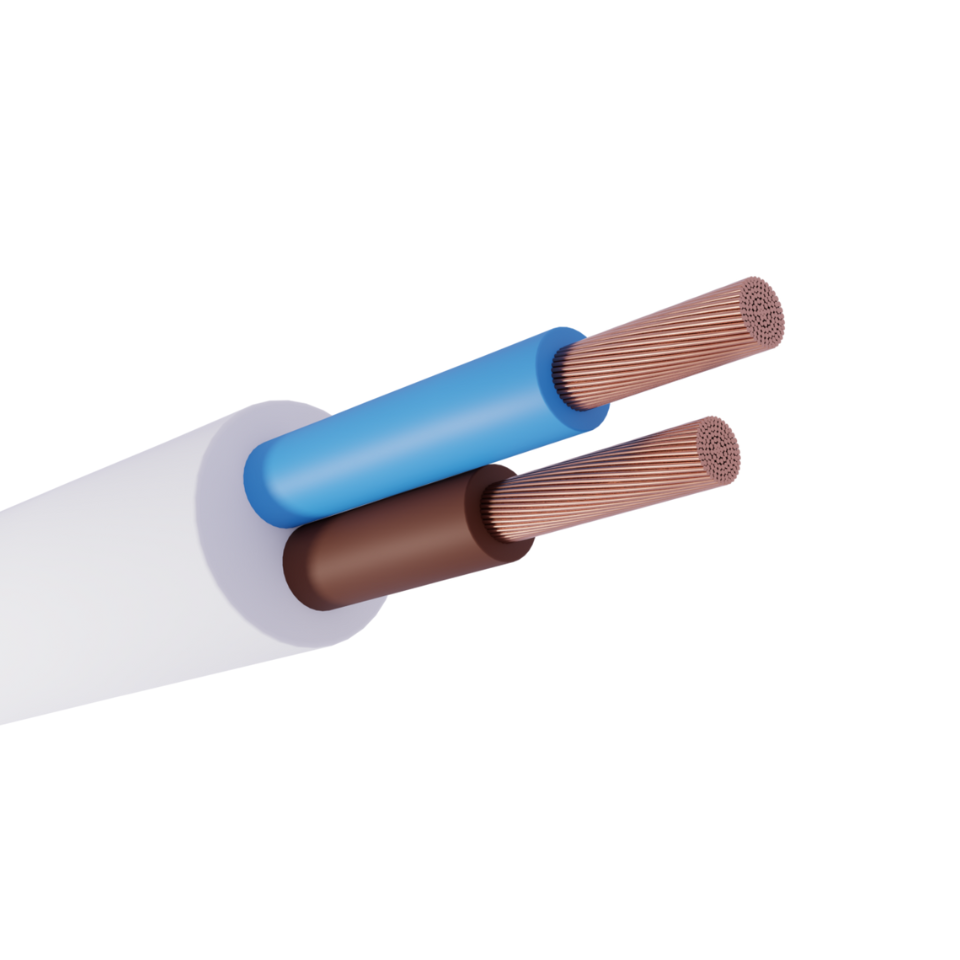

H03VV-F is a flexible round power cable used for power connections in low-power household appliances and portable devices, featuring high flexibility and flame-retardant PVC sheath, ideal for indoor light-duty mobile applications.
Conductor material Fine-stranded bare copper, class 6
Insulation PVC
outer sheath PVC
Standards DIN VDE 0285-525-2-11
HD 21.5 S3 +A1+A2
DIN EN 60228 class 5 (construction)
HD 308 S2 (core identification)
ÖVE / ÖNORM E8241 (HD21)
Nominal voltage Uo/U 300 / 300 Volt
Test voltage 2000
Temperature range -5°C till +70°C
Operating temperature 150 °C
Short circuit time 5
Bending radius 6
Flammability EN 60332-1-2
Application:
Suitable for dry locations for connections of portable electrical appliances
submitted to weak mechanical strength, like radio sets and lighting fittings,
but not for heating devices.
