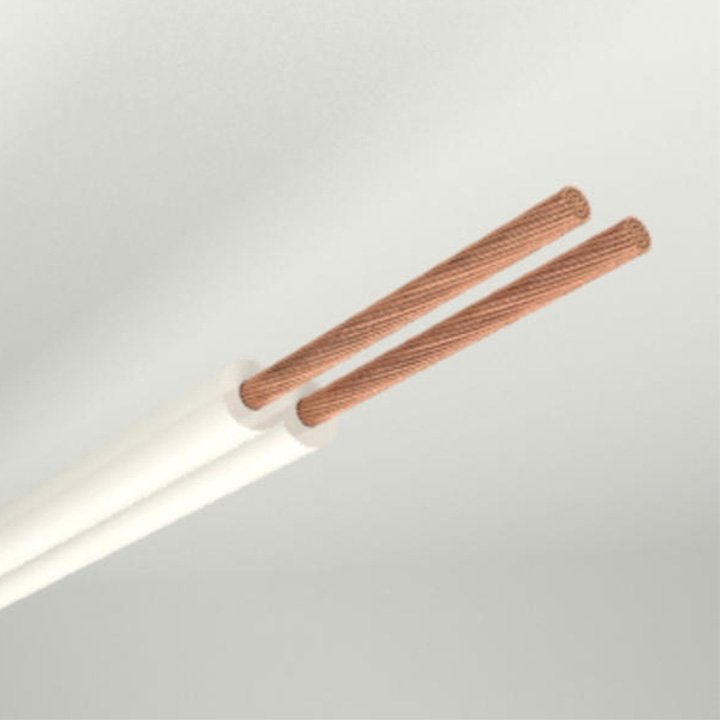

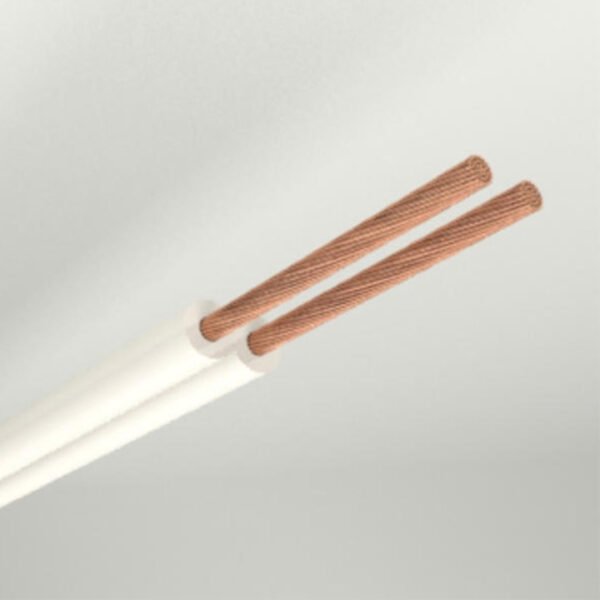

H03VH-H is a flat flexible power cable, categorized under security cables as a power cable, primarily used for connecting low-power household appliances and lighting equipment, offering high flexibility and flame retardance, suitable for indoor light-duty mobile applications.
Conductor material Fine-stranded bare copper, class 6
Insulation PVC
Standards DIN VDE 0285-525-2-11
DIN EN 60228 class 6 (construction)
Nominal voltage Uo/U 300 / 300 Volt
Test voltage 2000
Temperature range +5°C till +70°C
Operating temperature 150 °C
Short circuit time 5
Flammability EN 60332-1-2
Application:
Suitable for dry indoor locations, the H03VH-H cable connects portable low-power appliances like radios and lighting fixtures, designed for low mechanical stress, but not suitable for heating devices.
