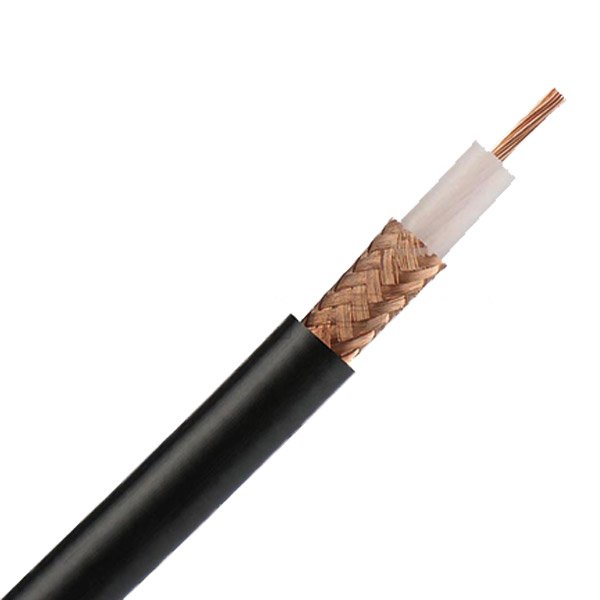

Coaxial Cable RG59
Application
For indoor installation as well as in industrial areas in conduits and cable ducts, for transmission of high-frequency signals and power.
Specification/Standard Adapted to US Standard MIL – C – 17
Conductor material Copper-plated steel
Core insulation material Polyethylene (Dielectricum)
Sheathing material (PVC) /PE or FRNC
Screen over strand Tinned copper braiding
Temperature range in motion From -5°C to +70°C
Frequency range F max [GHz] 3,0
Insulation resistance R iso [MOhm/km] 10000
Impedance ZL [Ohm] 75 +/-3
Attenuation 100 MHz [dB / 100m] 11,1
Capacitance C [NF / km] 67
Rel. velocity ratio V rel % 67.0
Electric strength 50Hz [KV]eff 7
Bending radius Min. [mm] 30
Operating peak voltage [KV] 3.5
Conductor loop-resistance [Ohm/km] 180.0
