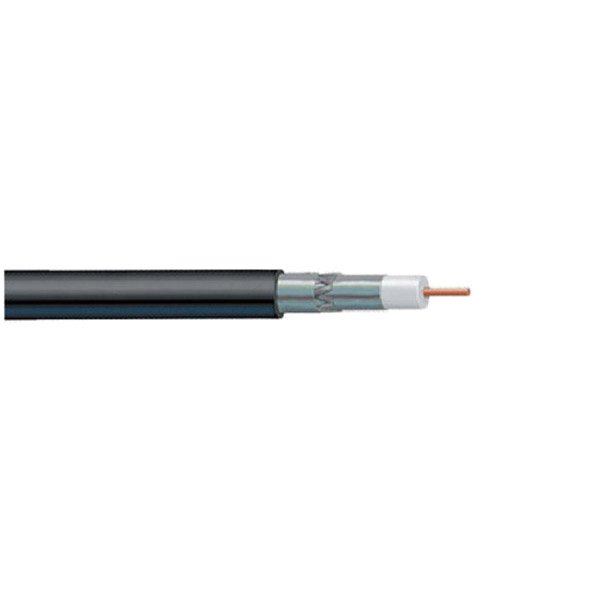

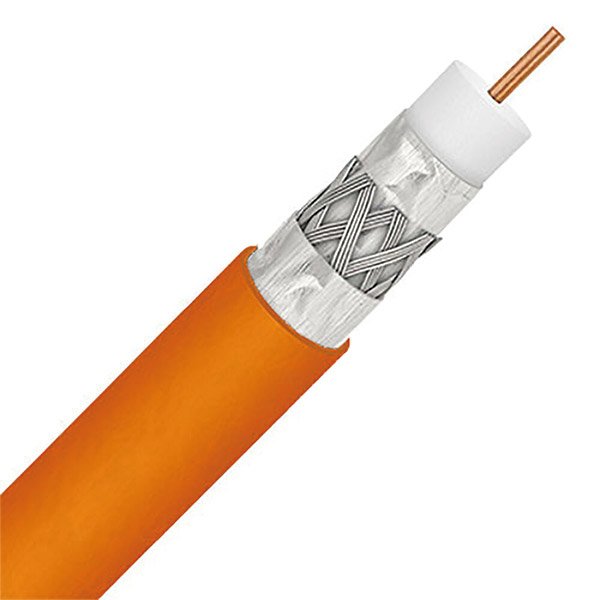

Coaxial Cable RG11
Application
For indoor installation as well as in industrial areas in conduits and cable ducts, for transmission of high-frequency signals and power.
Specification/Standard Adapted to US Standard MIL – C – 17

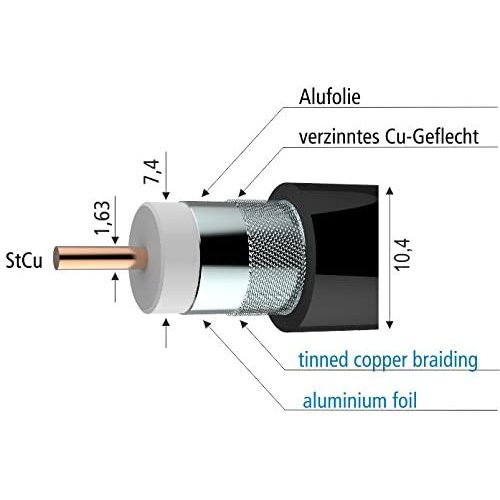

Conductor material Stranded tinned copper
Core insulation material Polyethylene ( Dielectricum )
Sheathing material (PVC) /PE or FRNC
Screen material Bare copper braiding
Temperature range in motion From -5°C to +70°C
Frequency range F max [GHz] 3.0
Insulation resistance R iso [MOhm/km] 10000
Attenuation 100 MHz [dB / 100m] 7.7
Capacitance C [NF / km] 67
Rel. velocity ratio V rel % 67.0
Electric strength 50Hz [KV]eff 10
Bending Radius min. [mm] 50
Operating peak voltage [KV] 5.2
