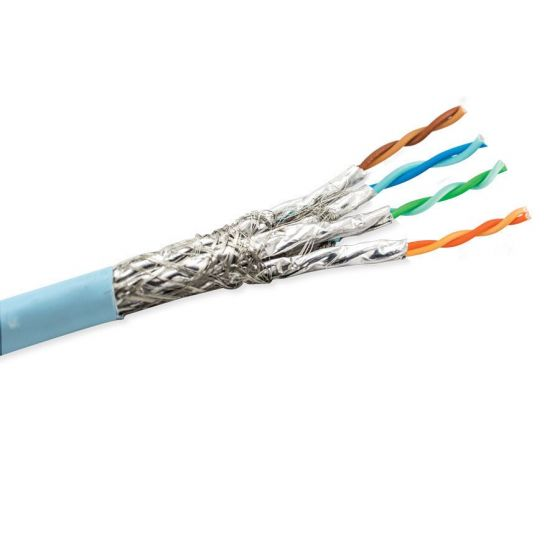

CAT 7A -10GBaseT1200MHz 23AWG SolidBC, 4PR, S/FTP, ANSI/TIA568.2-D,ISO/IEC11801ClassFa,IEEE 802.3bt,UL CMR(OR CMP), Jacket
Conductor 23AWG X 4P
Core insulation Foam-Skin PE
Pair Screen Aluminum Foil
Overall screen Tinned copper
Drainwire TC
PVC Sheath or with halogen-free sheath
Standards: UL 444
ISO/IEC 11801 2.Edition
TIA/EIA 568-B.2
EN 50575
IEEE 802.3bt
Technical data:
Operating Temperature Range -20°C+ 75°C
Minimum installation temperature 0°C+ 40°C
Conductor Resistance Max72.2ohm/km at 20°C
Dielectric Strength Min AC1.5KV
Spark Test 5.0KV
Rated Voltage Max 300 Volts
DC Resistance Unbalance Max 5%
Pair-to-Ground Capacitance Unbalance Max3300pF/km
Characteristic Impedance 100+/-15OHM
Nominal Velocityof Propagation(%) 67~69
Propagation Delay Max 536 ns/100m
Delay Skew Max 40 ns/100m
