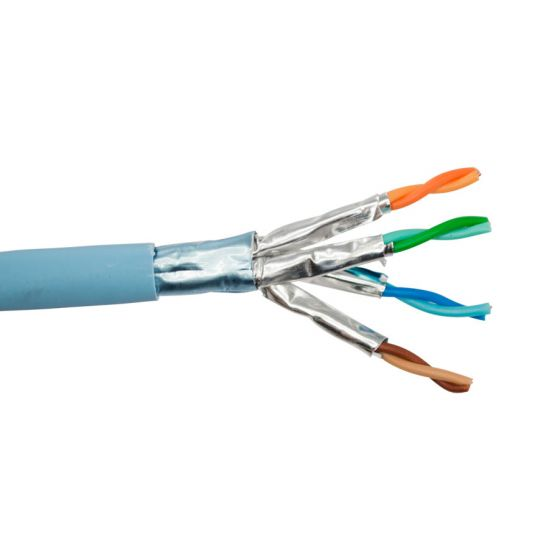

CAT6 AUGMENTED F/FTP- 10GBASE-T, 600 MHz 23 AWG
SOLID BC, 4PR, F/FTP, ANSI/TIA 568-C.2, IEC 11801 CLASS Ea,
UL CMR(OR CMP), EN50575:2014 Eca, PVC JKT
Conductor 23AWGX4P
Core insulation HD Polyethylen
Pair screen Aluminum Foil
Overall screen Aluminum Foil
Drainwire TC
PVC-sheath or with halogen free sheath
Standards: UL 444
ISO/IEC 11801 2.Edition
TIA/EIA 568-B.2
EN 50575
Technical Data:
Temperature range -20°C TO +75°C （moved）
| Conductor Resistance | Max 72.2ohm/km at 20°C |
| Rated Voltage | Max 300Volts |
| DC Resisitance Unbalance | Max5% |
| Pair-to-Ground Capacitance Unbalance | Max3300pF/km |
| Characteristic Impedance | 100+/-15OHM |
| Nominal Velocity of Propagation(%) | 67~69 |
| Propagation Delay | Max 536ns/100m |
| Delay Skew | Max 40ns/100m |
