14/2 Fire Alarm Cable – Stranded Shielded
ULSTANDARD 1424FPLP

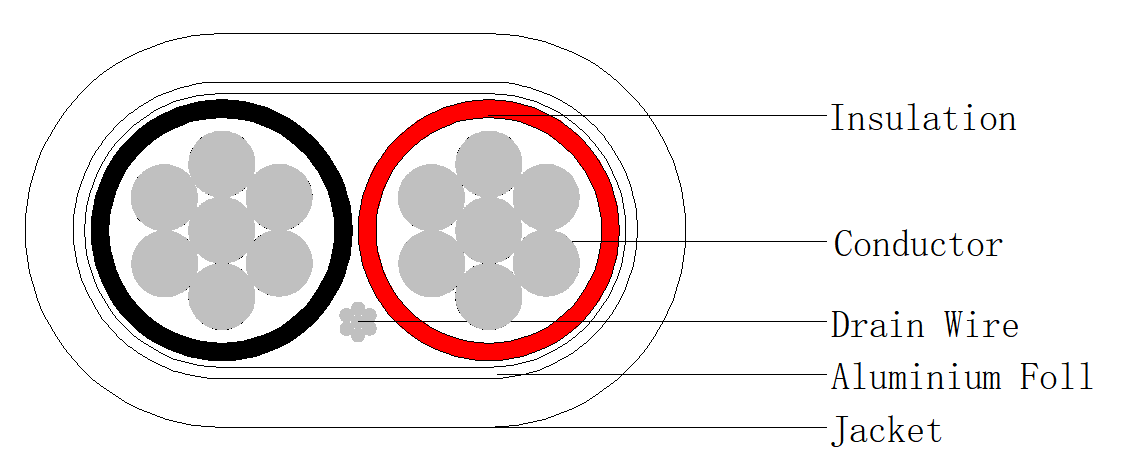

| Construction | |
| Center Conductor Material | Bare Copper |
| Center Conductor Gauge | 14 AWG (19/0.373mm/0 .015 inch,reference) |
| Conductor No | 2 Core (stranded) |
| Shield | Alum/Mylar Tape–Foil Side out |
| Insulation Material | FRPVC |
| Insulation Average Thickness | 0.20 mm (0.008 inch) |
| Diameter | 2.27 mm(0.089 inch) |
| Insulation Color | Black, Red |
| Jacket Material | FRPVC |
| Jacket Average Thickness | 0.38 mm (0 .015inch) |
| Diameter Over Jacket | 5.20 mm±0.20mm ( 0.228inch±0.008inch) |
| Drain Wire | 7 x 0.245mm |
| Rip Cord | Yes |
| Electrical Properties | |
| Operating Temp | -20C ~ +75C |
| Voltage Rating | 300 Volt RMS |
| DCR Conductor | 2.62 Ohms/1000 FT at 20C |
| Capacitance (Cond-Cond) | 56.7 pF/ft(Nominal) |
| Capacitance (Cond-Shield) | 122.0 pF/ft(Nominal) |
| Characteristic Impedance | 33.0 Ohms (Nomina |
