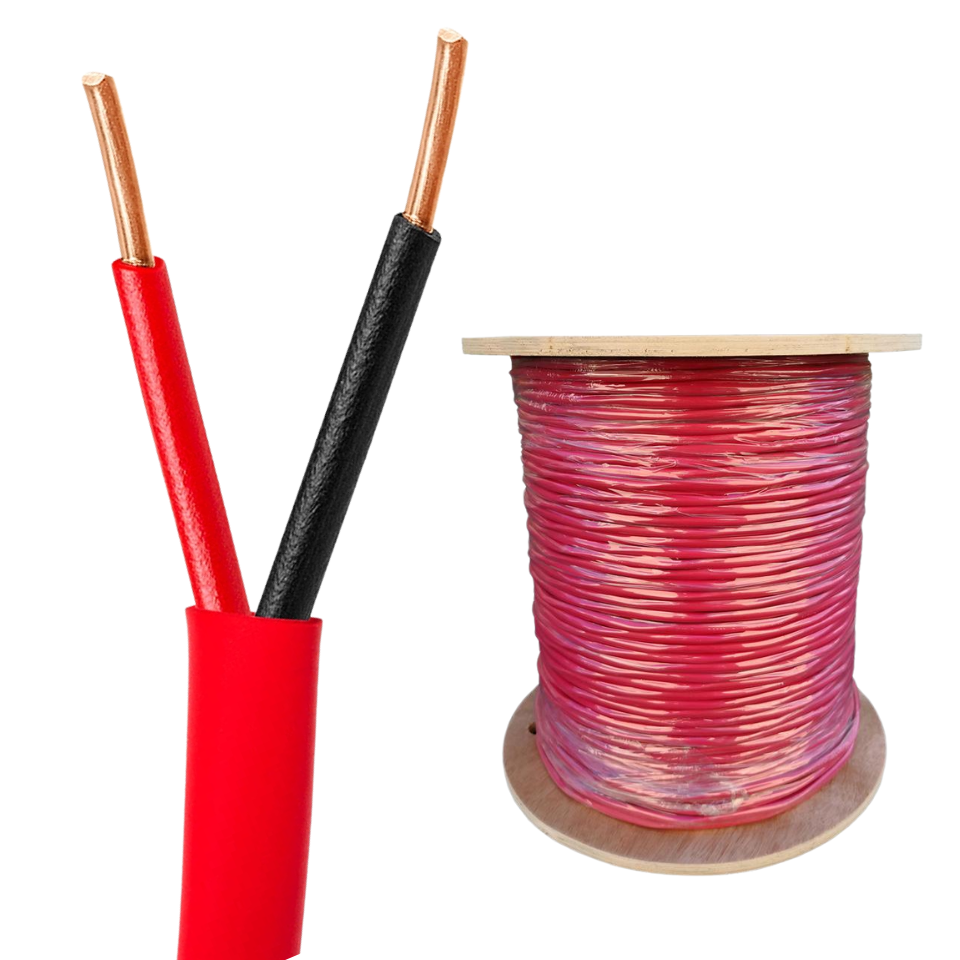

12-2 Alarm Cable-Non Shielded
ULSTANDARD 1424FPLP

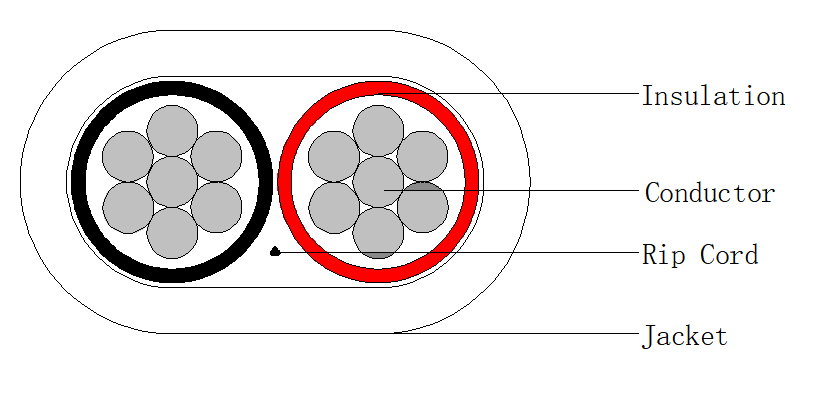

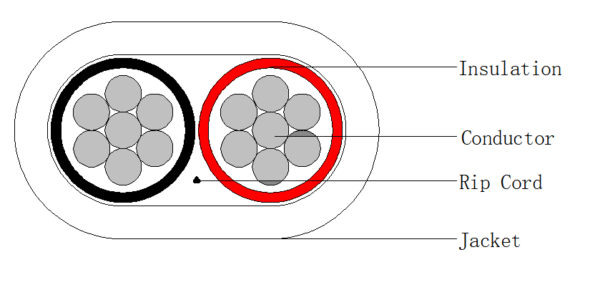

| Construction | |
| Center Conductor Material | Bare Copper |
| Center Conductor Gauge | 12 AWG (19/0.47mm/0 .019 inch, reference) |
| Conductor No. | 2 Core(stranded) |
| Insulation Material | FRPVC |
| Insulation Average Thickness | 0.20 mm (0.008inch) |
| Diameter | 2.75mm (0.108inch) |
| Insulation Color | Black, Red |
| Jacket Material | FRPVC |
| Jacket Average Thickness | 0.38mm (0 .015inch) |
| Diameter Over Jacket | 6.26 mm±0.20mm (0.246inch±0.008 inch) |
| Rip Cord | Yes |
| Electrical Properties | |
| Operating Temp | -20 ℃ ~ +75 ℃ |
| Voltage Rating | 300 Volt RMS |
| DCR Conductor | 1.65 Ohms/1000 FT at 20C |
| Capacitance (Cond-Cond) | 38.0 pF/ft(Nominal) |
| Characteristic Impedance | 51.0 Ohms (Nominal) |
